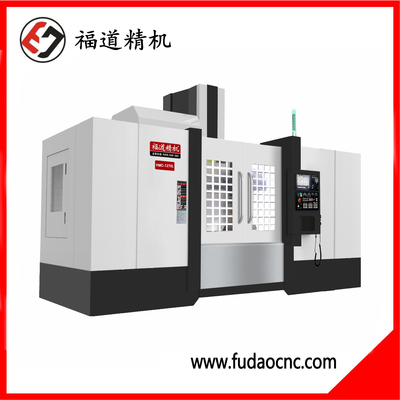

◆线轨结构采用高刚性的精密线性导轨，同时搭配高精度C3级滚珠丝杆。以响应快、定位精度高、高扭矩、低噪音的AC数控伺服马达。
◆The line structure adopts high-rigidity precision linear guides, and is equipped with high-precision C3 ball screws. AC servo servo motor with fast response, high positioning accuracy, high torque and low noise.
◆线轨整机结构以快速移动为基本设计出发点，为零部件量产、高精密加工、为加工效率**化提供保证。
◆The structure of the line rail is based on rapid movement as the basic design starting point, which guarantees mass production of parts, high precision machining and maximum processing efficiency.
◆影响整机品质的核心部件均采用全球**品牌的原装进口优质配件，满足客户不同材料加工需求的个性化选择。
◆ The core components that affect the quality of the whole machine are all imported from the world's top brands, to meet the individualized choice of different materials processing needs.
◆线轨可根据不同产品加工需求，选择加装第四轴、第五轴NC转台。◆The line rail can be equipped with the fourth axis and the fifth axis NC turntable according to different product processing requirements.
机床数据\型号 Machine data\model | 单位 ubit | VMC-1060L | VMC-1270L | VMC-1370L |
X轴行程 X-axis travel | mm | 1000 | 1200 | 1300 |
Y轴行程 Y-axis travel | mm | 600 | 700 | 700 |
Z轴行程 Z-axis travel | mm | 600 | 600 | 650 |
主轴端面至工作台面距离 Spindle end to work surface distance | mm | 70-670 | 87-687 | 150-800 |
主轴中心至立柱防护面距离Spindle center to column guard surface distance | mm | 655 | 785 | 757 |
工作台尺寸 working desk size | mm | 1300×600 | 1360×700 | 1500×700 |
工作台**承重 Workbench maximum load bearing | kg | 1000 | 1200 | 1200 |
工作台T型槽(槽数-尺寸×间距)Workbench T-slot (number of slots - size × spacing) | mm | 5-18×100 | 5-18×152.5 | 5-18×152.5 |
主轴锥度规格 Spindle taper specification |
| BT40 | BT40/BT50 | BT50 |
主轴转速（可选配） Spindle speed (optional) | rpm/mm | 8000/10000/12000 | 8000/10000/12000 | 8000/10000/12000 |
主轴电机功率 Spindle motor power | kw | 7.5/11 | 15 | 15 |
三轴电机功率（X/Y/Z） Three-axis motor power (X/Y/Z) | kw | 3/3/3 | 3/3/3 | 3/3/3 |
X/Y/Z轴快速移动速度 X/Y/Z axis fast moving speed | m/min | 24/24/18 | 24/24/18 | 24/24/18 |
切削进给速度 Cutting feed rate | m/min | 0-10000 | 0-10000 | 0-10000 |
定位精度 positioning accuracy | mm | JIS±0.005/300 | JIS±0.005/300 | JIS±0.005/300 |
重复定位精度 Repeatability | mm | JIS±0.003/300 | JIS±0.003/300 | JIS±0.003/300 |
气压需求 Air pressure demand | Kg/cm² | ≥6 | ≥6 | ≥6 |
刀库容量 Tool magazine capacity | 把 | 16/20/24 | 16/20/24 | 16/20/24 |
机床重量 Machine weight | Kg | 7500 | 10500 | 11000 |
机床尺寸（长×宽×高） Machine size (length × width × height) | mm | 3300×2850×3050 | 3500×3000×3200 | 3550×3100×3300 |
备注：本公司机床不断进行研发改良，如有外观及技术参数仅供参考，实际外观技术参数均以订货为准。
Remarks: The company's machine tools are continuously researched and improved. If the appearance and technical parameters are for reference only, the actual appearance technical parameters are subject to the order.
